Type 2-T2 (Bay window) M-PLATES decoding

M-PLATE

Type 2-T2 1970-1979 (MPlate)


Forum link to my M-Plate


Forum signature link to my M-Plate

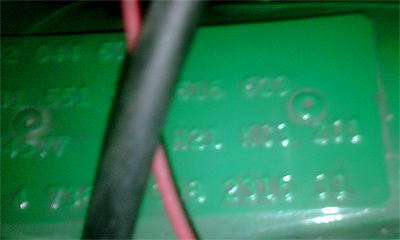

Photos

M-Plate content

Model Type 2 (T2) mod. 231(6) :
- Kombi
- 5 seater (arrangement 2-0-3)
- Sliding door right
- LHD
Chassis number 2382044676
Serial number 044 676
Model year 1978
Planned production date Thursday, 27 October 1977
Number for production planning
 (temporary serial number)
7364
Type of engine Type 4 (CJ) - 1970cc, 51 kW (70 bhp DIN)
Type of transmission Manual 4-speed gearbox
Paint color L66Z -  Mint Green (RAL 6029)
Remark : German Police
Interior color (doorpanels and seats) 77 - Canyon Brown Leatherette
Destination Germany, Braunschweig
List of option codes (M-Codes) 201 531 551 597 616 623 CN9 H21 KC3

Known M-Codes

M-CODE Description Concerned models From chassis number To chassis number
201 Pick-up with enlarged wooden platform 261
264

531 With harder rear torsion bars 211-228
241
244

551 Headlamp with halogen lamps instead of bulbs 211-274

597 12V 63 Ah battery instead of 45 Ah
616 Back-up lamps 211-268

2x1 2 000 001
623 Prepared for radio communication installation, Fully suppressed electrical installation 211-274

CN9 Collection of M-codes: M 066/082/089/102/186 (1978) 2x8 2 000 001 2x8 2 300 000
  066 Floor cover (rubber mat) in passenger compartment 231-234


  082 Mounting parts for first aid kit
  089 Laminated windscreen (1969-1979) 2x9 000 001 2x9 2 300 000
  102 Rear-window defogger 211-268


  186 Safety belts for all seat in passenger compartment
H21 Collection of M-codes: M 103/161/172/184/227/506/507/508
  103 Heavy duty shock absorbers for bad roads 211-274


  161 Seats in cabin with mountings for headrest
  172 Tubeless radial steel-belted tires (185 SR 14)
  184 Three-point seat belt retractable 211-268


  227 Detachable headrests for all seats in cabin (with M161 only) 2x3 2 000 001
  506 Brake servo and dual-circuit, brake warning light (LHD) 211-271


  507 Vent wings in cab doors 211-235
261-274


  508 Additionnal vent window in passengers compartment opposite sliding door 221-244

2x1 2 300 000
  508 With vent wing in sliding door and in all windows in the opposite side panel 221-244

2x2 2 000 001 2x7 2 300 000
  508 Sliding window in the side panel opposite the sliding door 271
274

2x2 2 000 001
  508 With vent wing in the Double Cab door and in the opposite side panel 265-268

2x2 2 000 001
KC3 Collection of M-codes: M 032/060/121/206/503
  032 Lockable filler cap for fuel tank 211-274


  060 Eberspacher heater BA6 (LHD) 2x4 2 000 001
  121 Two electrical ventilators in fresh air system
  206 Inner rear-view mirror, anti-dazzle
  503 Lining-roof panel (hard board) 211-216
231
234
