Type 2-T2 (Bay window) M-PLATES decoding

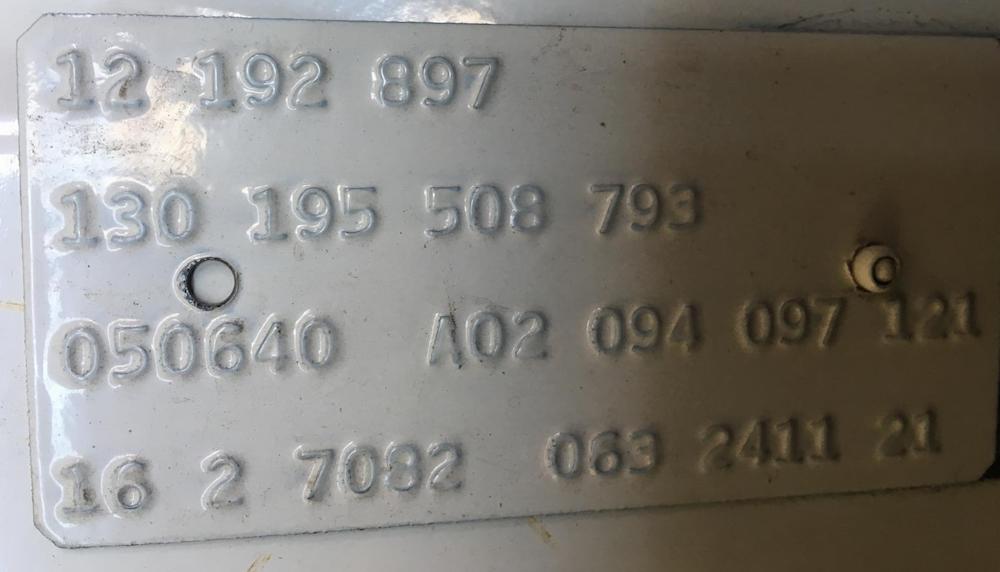

M-PLATE

Type 2-T2 1970-1979 (MPlate)


Forum link to my M-Plate


Forum signature link to my M-Plate


Photos

M-Plate content

Model Type 2 (T2) mod. 241(1) :
- Microbus Deluxe
- 7 seater (arrangement 2-2-3)
- Sliding door right
- LHD
Chassis number 2412192897
Serial number 192 897
Model year 1971
Planned production date Tuesday, 20 April 1971
Number for production planning
 (temporary serial number)
7082
Type of engine Type 1 (AE) - 1584cc, 37 kw (50 bhp DIN)
Type of transmission Manual 4-speed gearbox
Paint color
Color upper part : L90D -  Pastel White
Color lower part : L53D -  Niagara Blue
Interior color (doorpanels and seats) 40 - Black Leatherette
Destination Germany, Wiesbaden
List of option codes (M-Codes) 094 097 121 130 195 508 793 793 A02

Known M-Codes

M-CODE Description Concerned models From chassis number To chassis number
094 Lockable engine lid
097 Car radio model "Emden" (MW, LW, FM and tapedeck connection)
121 Two electrical ventilators in fresh air system
130 Without steel sliding roof 241
244

195 Exclusive use of Blaupunkt radio (with M095,M097 & M098 only)
508 Additionnal vent window in passengers compartment opposite sliding door 221-244

2x1 2 300 000
508 With vent wing in sliding door and in all windows in the opposite side panel 221-244

2x2 2 000 001 2x7 2 300 000
508 Sliding window in the side panel opposite the sliding door 271
274

2x2 2 000 001
508 With vent wing in the Double Cab door and in the opposite side panel 265-268

2x2 2 000 001
793 Trumatic SB2000 heater 231, Campmobiles

2x6 2 000 001
793 Trumatic SB2000 heater 231, Campmobiles

2x6 2 000 001
A02 Specifications for the USA
Collection of M-codes: M 020/026/089/102/206/506/511/524/525 (1971-1972)
2x1 2 000 001 2x2 2 300 000
  020 Speedometer and odometer in Miles 211-274


  026 With activated carbon container for absorbing fuel vapour 211-274, California

2x2 2 300 000
  026 With activated carbon container for absorbing fuel vapour 211-234, Japan

2x6 2 120 000
  026 With activated carbon container for absorbing fuel vapour 211-234, Autralia

2x6 2 120 000
  089 Laminated windscreen (1969-1979) 2x9 000 001 2x9 2 300 000
  102 Rear-window defogger 211-268


  206 Inner rear-view mirror, anti-dazzle
  506 Brake servo and dual-circuit, brake warning light (LHD) 211-271


  511 Padded instrument panel (LHD only) 211-271


  524 Sealed beam headlamps, dual circuit brake control, back-up light and side marker reflectors (LHD) without emergency light system 211, USA, Canada
241, USA, Canada
265, USA, Canada

2x9 000 001 2x9 999 999
  524 Sealed beam headlamps, dual circuit brake control, back-up light and side marker reflectors (LHD) with buzzer for ignition-starter switch 211, USA, Canada
241, USA, Canada
265, USA, Canada

2x0 2 000 001 2x2 2 000 000
  524 Sealed beam headlamps, dual circuit brake control, back-up light and side marker reflectors (LHD) 211, USA, Canada
241, USA, Canada
265, USA, Canada

2x2 2 000 001
  525 Three-point safety belts front, left and right and lap belts in passenger compartment 211-265, USA, Canada
